In addition to smooth and natural vocals, the woofer is capable of excellent bass output, delivering impactful performance and ensuring seamless integration if a subwoofer is used.

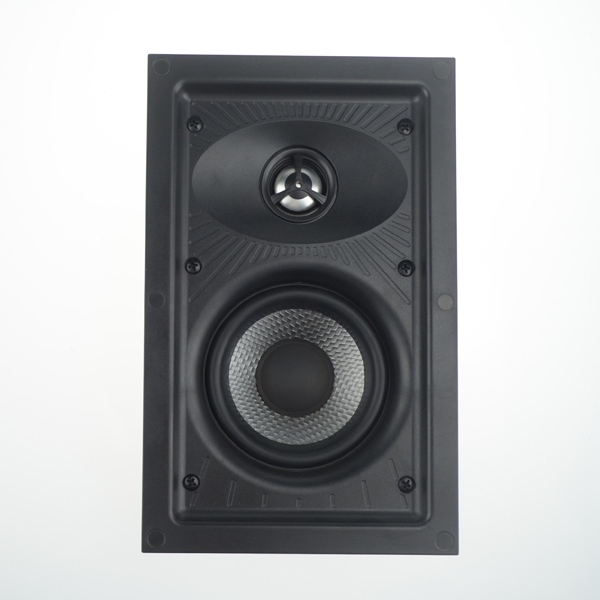

The 1-inch silk dome tweeter generates abundant detail and clarity, projecting a solid and focused image for all sources in a spacious sound stage.

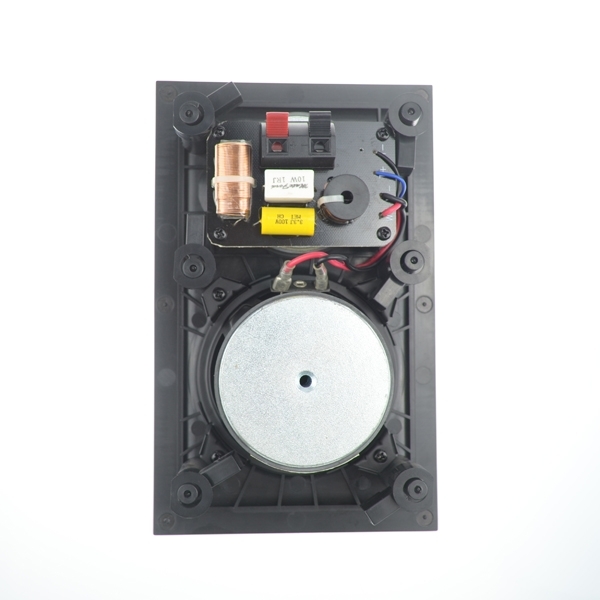

Perfect integration between the tweeter and woofer is achieved through a 12dB crossover network that ensures coherent transition in the critical upper midrange region.
Built-in mounting tabs makes installation a breeze. Requiring only a screw driver, the mounting tabs automatically grabs onto surrounding drywall securely.
Model | IWL40001 |
Connector Type | Gold plated push terminals |
Frequency Response | 70Hz-20KHz |
Color | Black/White |
Sold As | Each |
Speaker Grille | Aluminum Micro-Perf Mesh |
Crossover Frequency | ~2.5KHz |
Nominal Impedance | 6 ohm |
Power Peak | 70W |
Power RMS | 30W |
Sensitivity | 86dB |
Voice coil | 1" Voice Coil |
Tweeter | 3/4" Aluminum Dome, Ferrofluid-Cooled Neodymium |
Woofer | 4" Polypropylene Injection Cone |
Dimensions (W x H x D) | 240mmx150mmx80mm |
Cutout Dimension | 215mmx125mm |
