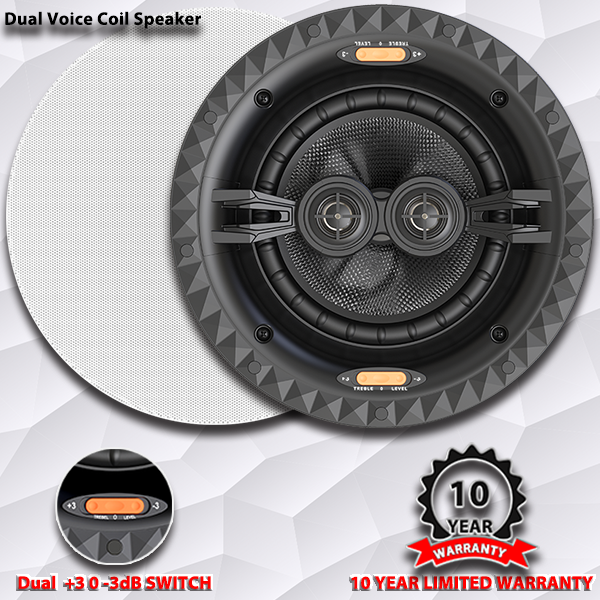

The CCD650 features advanced technology, such as the dual voice coil design (DVC). DVC delivers two-channel sound from a single speaker, provided by two quality dome tweeters (the left and right channels are divided between the two). The DVC design is a valuable feature in many everyday situations. For example, when conventional speakers are placed along a hallway, the stereo experience will shift as you move between the right and left speaker. Fitting a pair of CCD650 speakers will eliminate this effect, as you have both left and right channel coming from just one speaker.

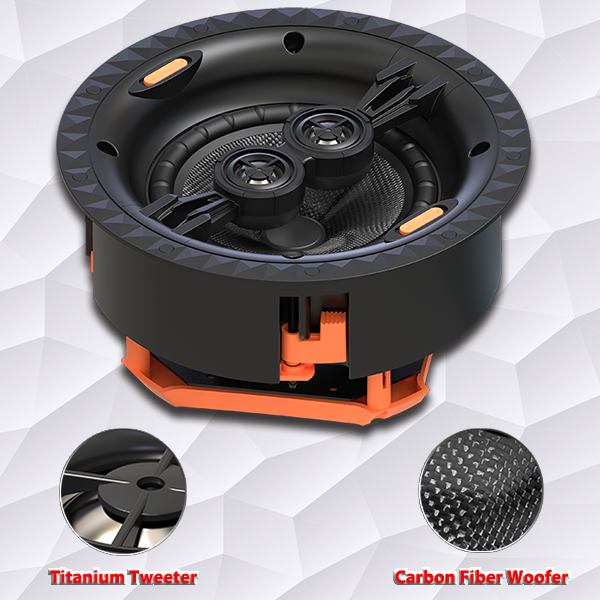

Coated Carbon Fiber Cone woofer
Dual Titanium Tweeter for wide dispersion
The tweeter can be fine tuned with the switch so it fits your taste.
Dual Voice Coil for stereo outputs

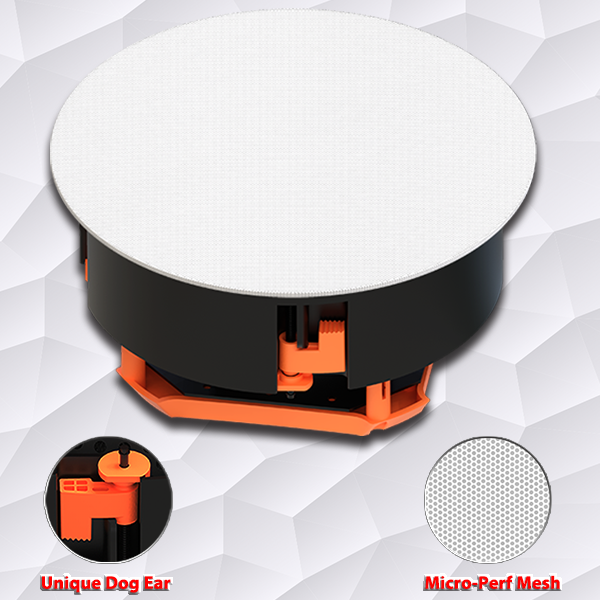

Durable Painting Finishing Grill
One-step Magnetic Installation
Ease-tightening Tension Dogs
Solid constructed, moisture-resistant speakers can be used in bathrooms, saunas, or under outdoor eaves
Model |
CCD650 |
Connector Type |

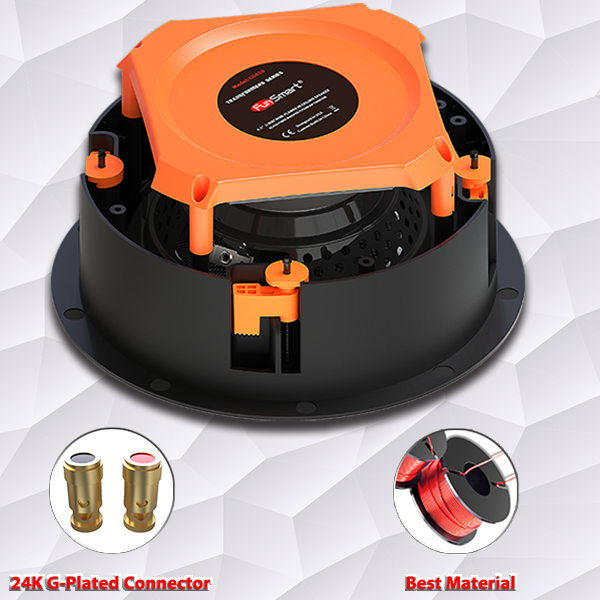

Gold plated push terminals |
Frequency Response |
60Hz-20KHz |
Color |
Gray/White/Black |
Sold As |
Each |
Speaker Grille |
Galvanized Plate Micro-Perf Mesh |
Speaker Type |
2-way InCeiling |
Nominal Impedance |
6.5 ohms |
Power Peak |
150W |
Power RMS |
5-90W |
Sensitivity |
87dB |
Adjustments |
Tweeter Level Switch -3dB Flat +3dB |
Tweeter |
Dual 0.75" Titanium Tweeter, Ferrofluid-Cooled Neodymium |
Woofer |
6.5"Coated Carbon Fiber Cone woofer |
Dimensions (D x H) |
Ø236.5mmx117.8mm |
Cutout Diameter |
Ø211.5mm |
